smart wifi gas furnace thermostat

smart wifi gas furnace thermostat

Professional Smart WiFi Gas Furnace Thermostat from China factory. App control, voice assistant compatible, accurate temp control, easy installation. Wholesale & custom solutions welcome.

smart wifi gas furnace thermostat

Mehrere Funktionen

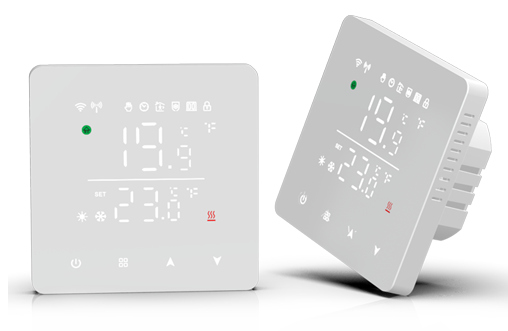

This thermostat features APP remote control and voice control, equipped with a clear LED display and sensitive touch buttons. It connects stably via 2.4GHz WIFI, supports programmable schedules, dimmable ambient lighting, and includes a child safety lock, fully meeting your needs for intelligence, convenience and safety.

  • App-Steuerung
    App-Steuerung
  • Sprachsteuerung
    Sprachsteuerung
  • LED Bildschirm
    LED Bildschirm
  • Touch-Taste
    Touch-Taste
  • 2.4 GHZ WLAN
    2.4 GHZ WLAN
  • Programmierbar
    Programmierbar
  • Custom Backlight
    Custom Backlight
  • Kinder sicherung
    Kinder sicherung

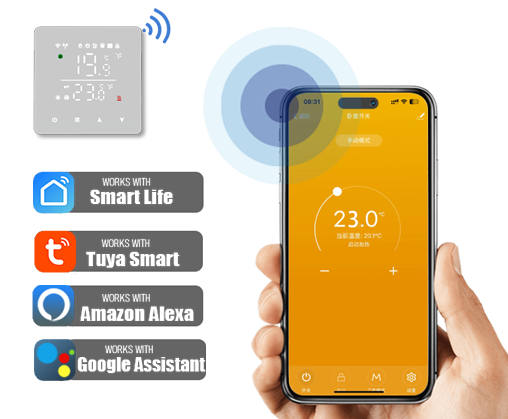

APP-Fernbedienung

Tuya oder Smart Life App
Unterstutzung fur iOS undAndroid.
Steuern Sie Ihr Raumthermostat jederzeit und uberall ausder Ferne

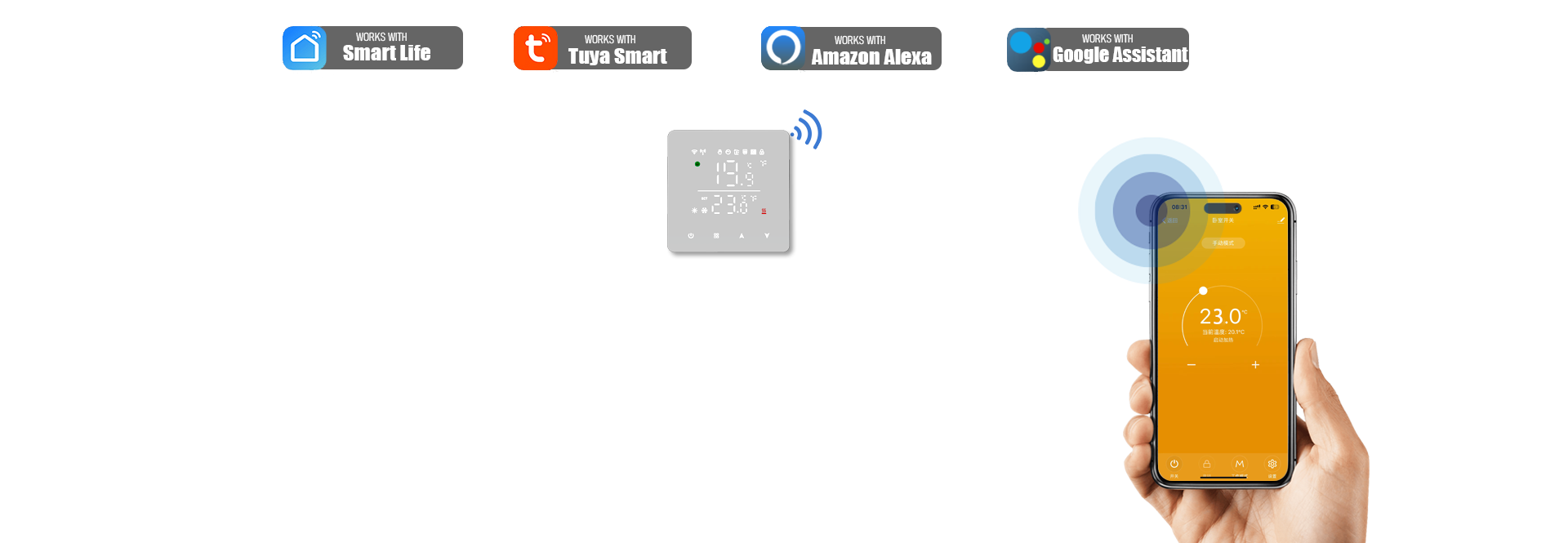

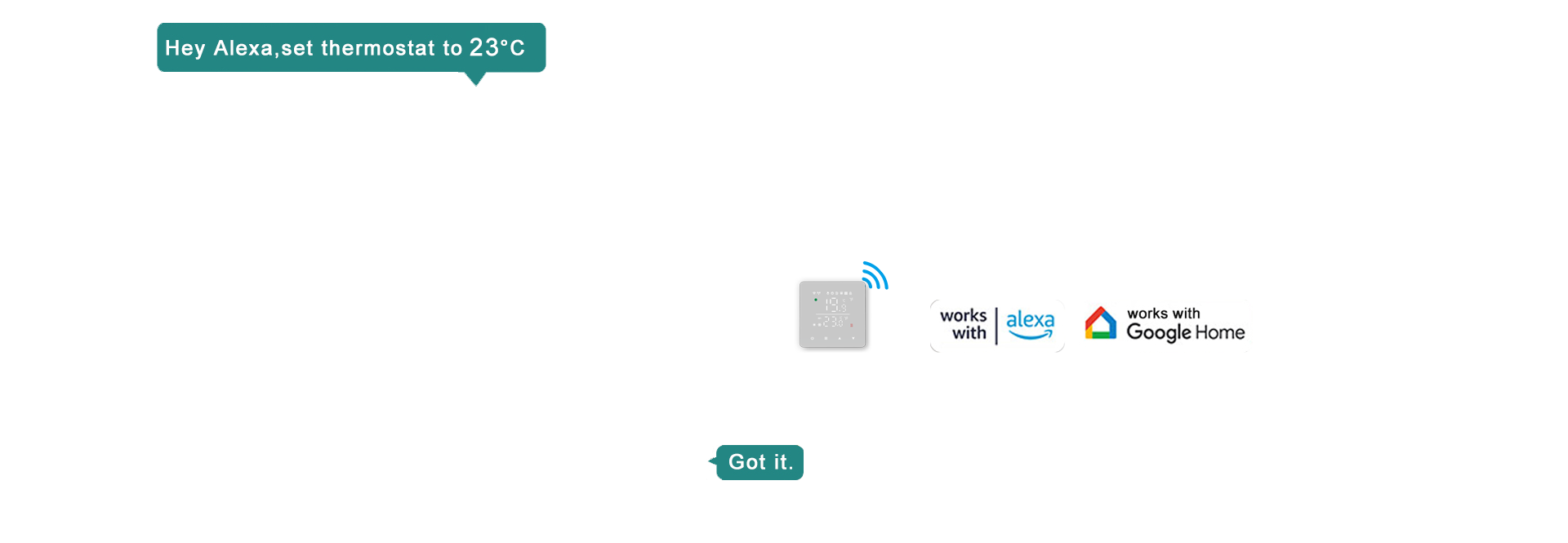

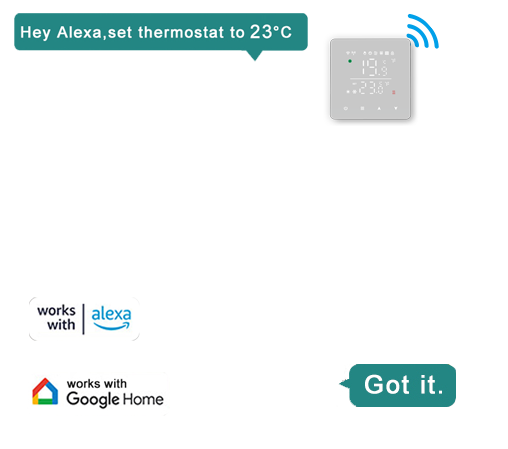

Sprachsteuerung

Kompatibel mit Alexa, GoogleHome

Thermostat application

 Water/Electricity/Gas Boiler Temperature Control System

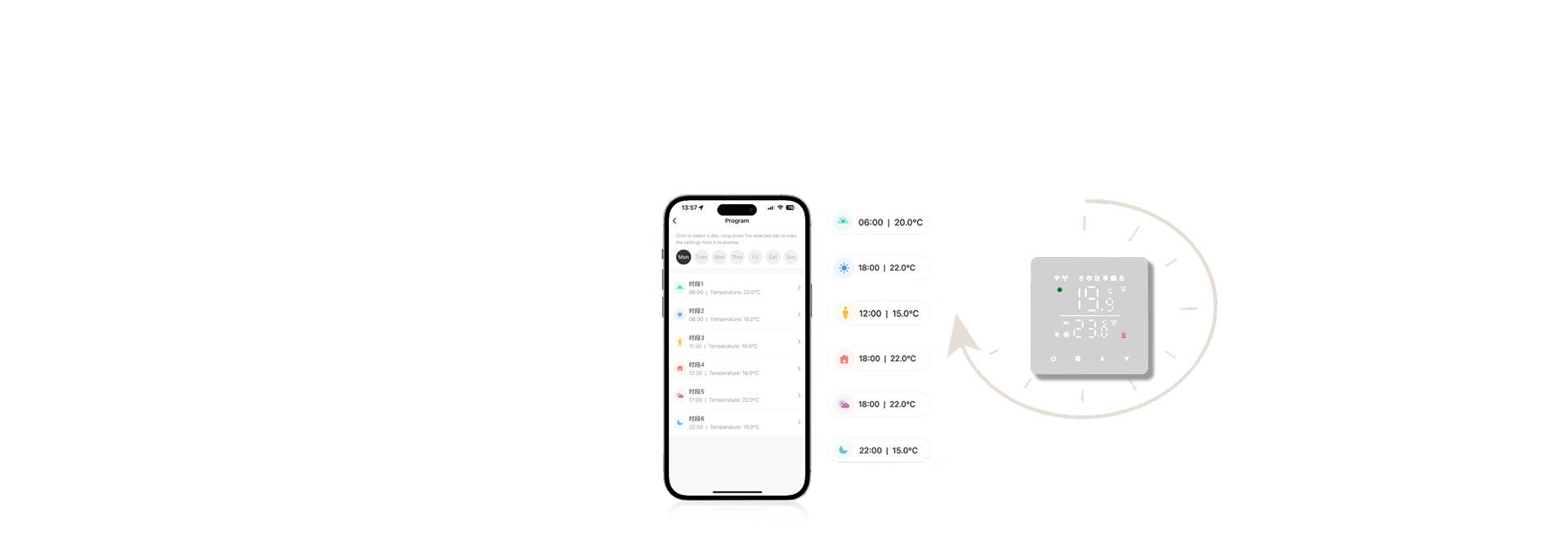

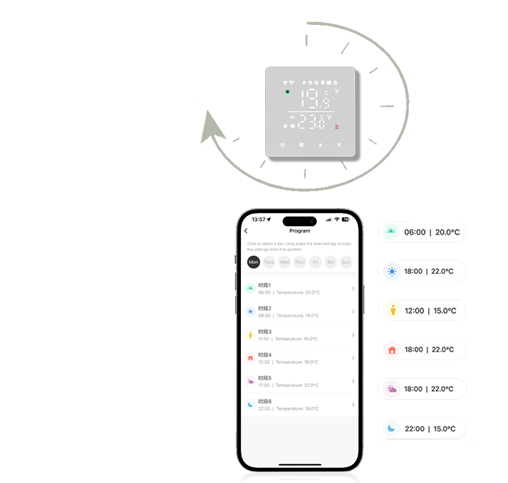

Programmierbare Thermostate

Automatisches Heizen nach einem bestimmten Zeitplan.

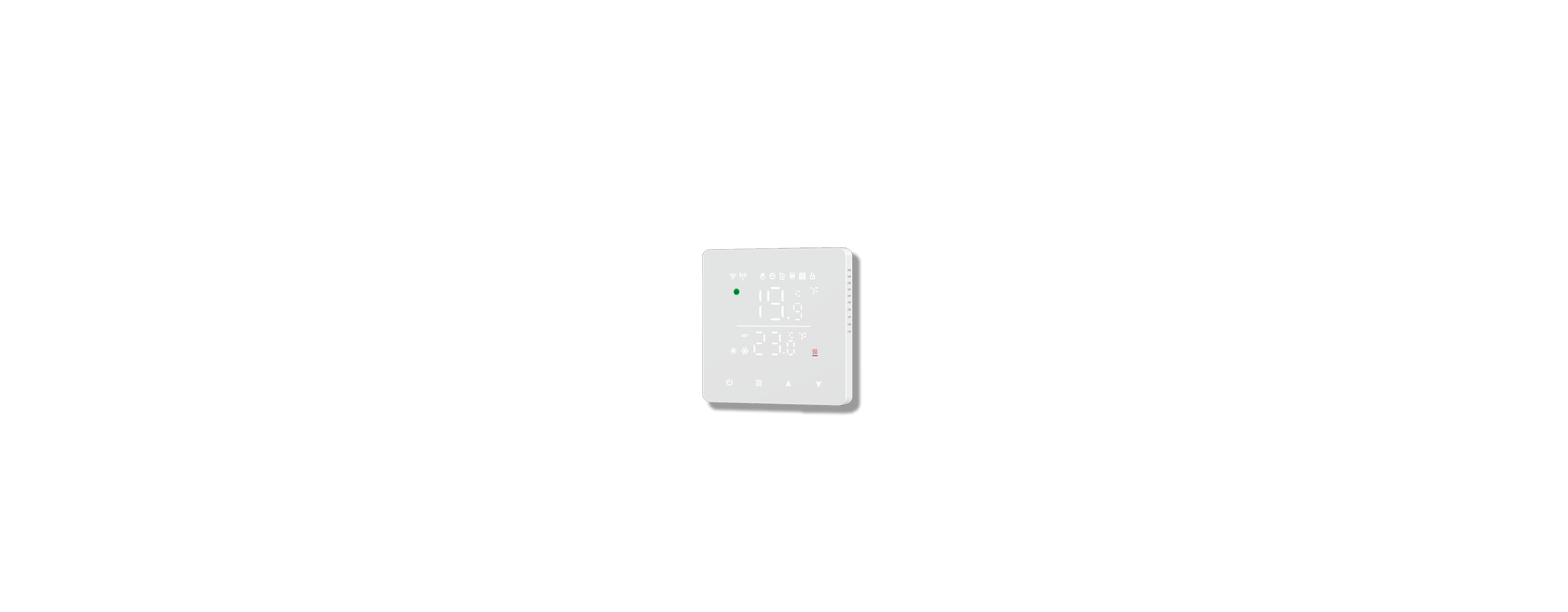

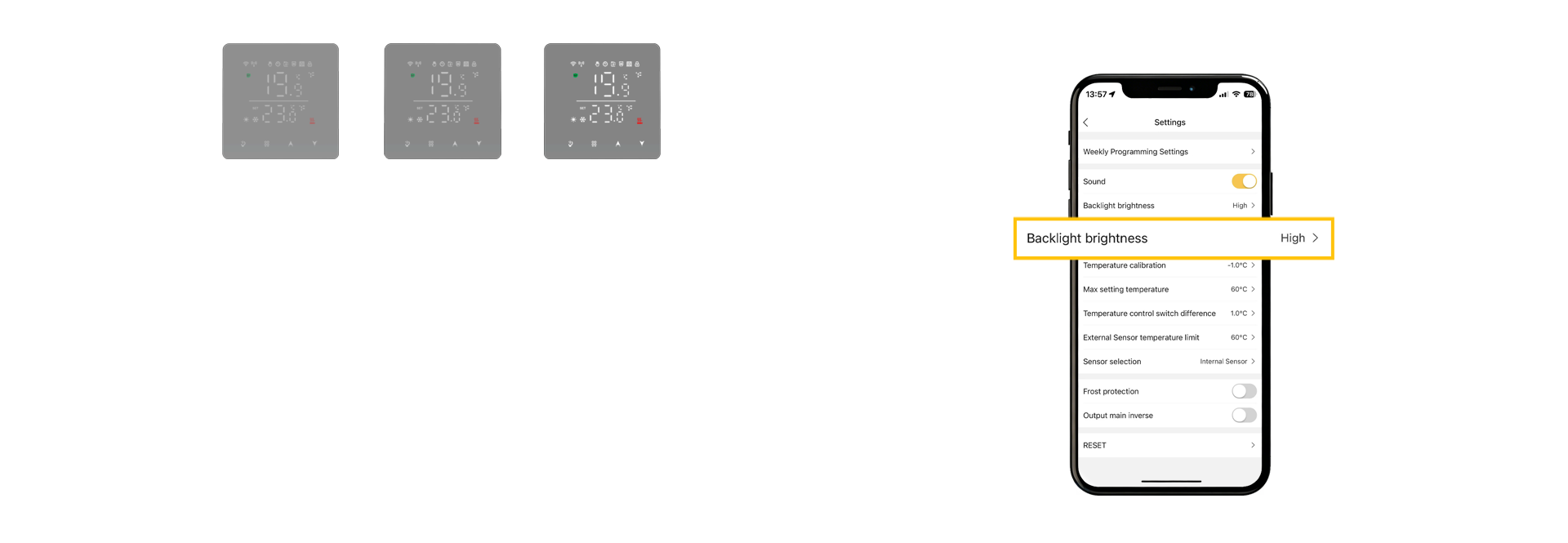

Einstellbare Hintergrundbeleuchtung

4 Helligkeitsstufen

Die Helligkeit kann eingestellt oder ausgeschaltet werden, um Ihren Schlaf nicht zu stören.

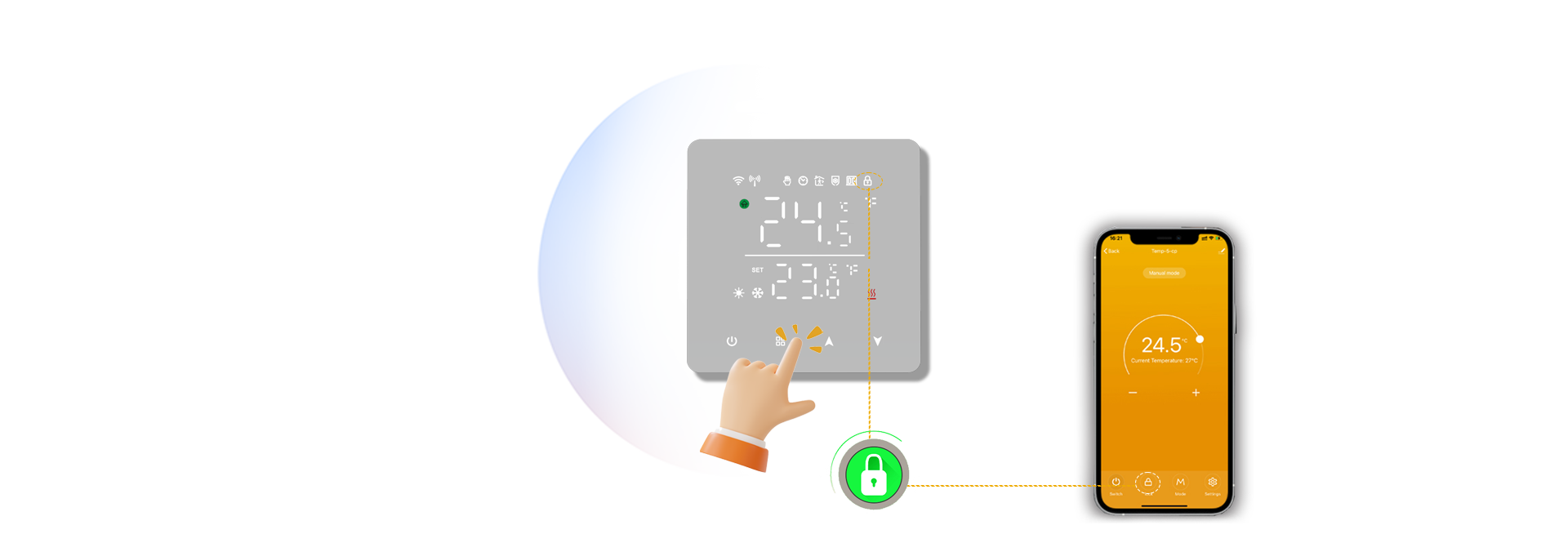

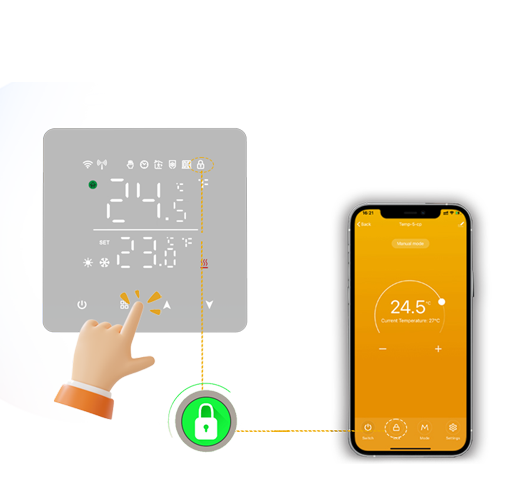

Children Lock

Locking function is designed to  prevent children from  operating by mistake

Build a smart home with your family

You can share access to your smart thermostat with family members.

Frostschutz

Lange kalt, Thermostat aktiviert kurze Heizung, verhindert Einfrieren.

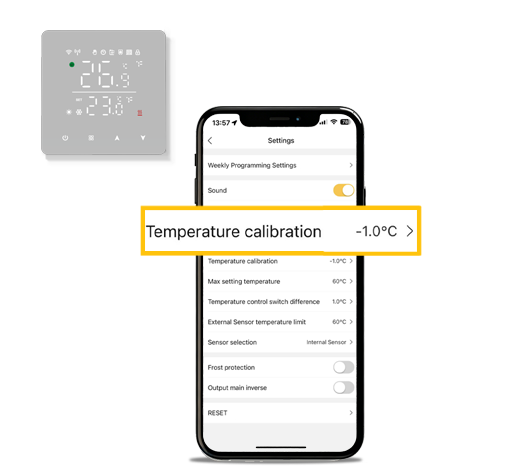

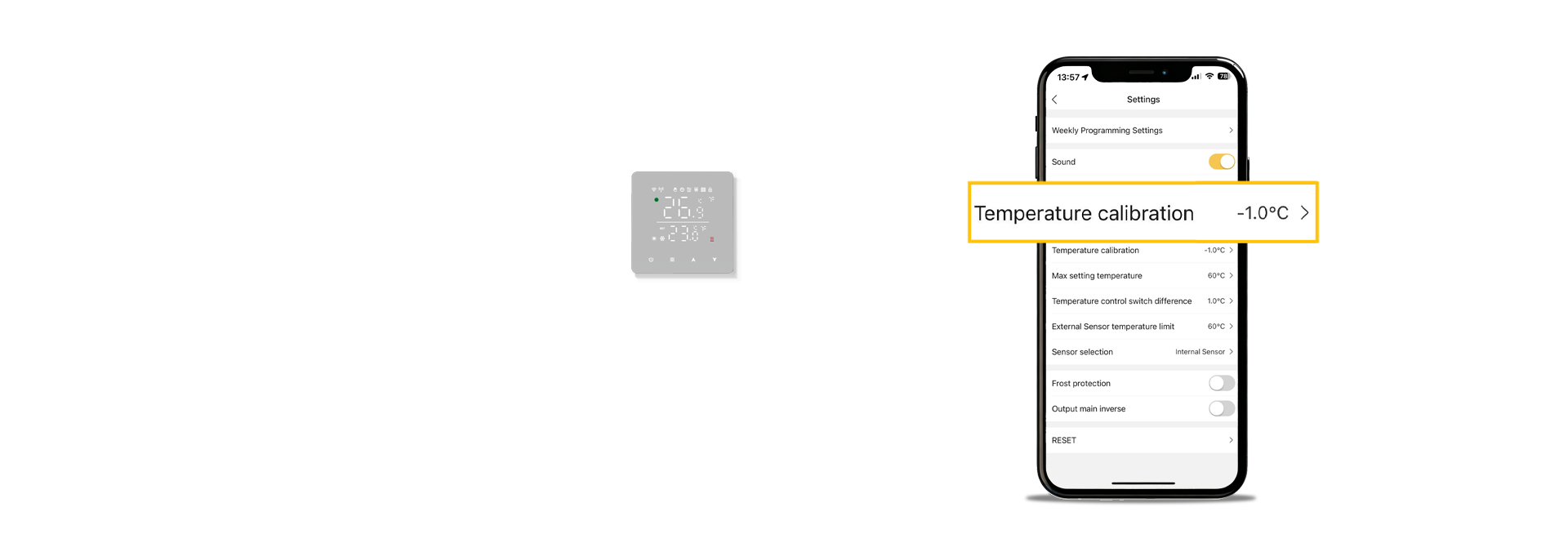

Precise Temperature Control

If you notice a temperature difference, you can calibrate it.

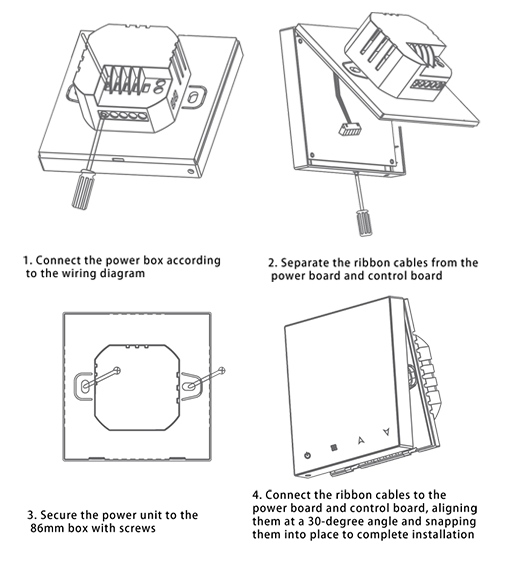

Installation Steps

This product uses standard 86mm mounting (compliant with European standards)

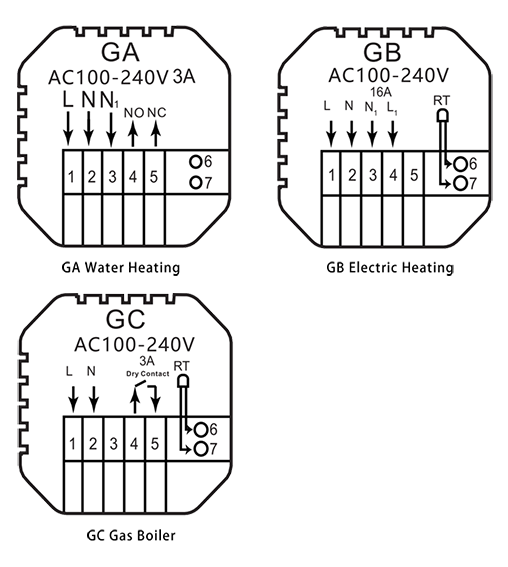

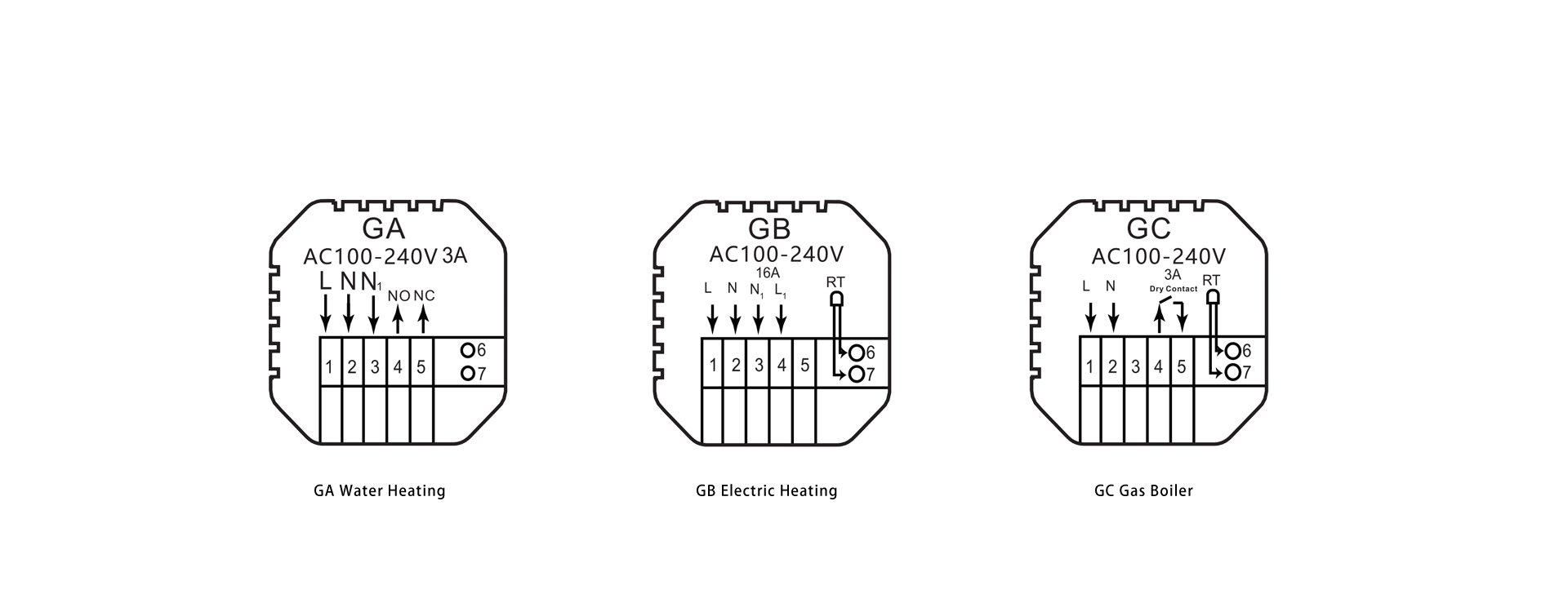

Wiring Diagram

Caution: Risk of electric shock or equipment damage.
Feature Overview
  • Q
    1. Power On/Of
    A

    Press the  Power On/Of button to turn the thermostat on or off.

  • Q
    2. Mode Switching
    A

    Press the Mode Switching button to toggle between Manual and Away modes.

  • Q
    3. Child Lock Function
    A

    Simultaneously press and hold the 68725109_1776354304.pngand75368420_1776354350.png buttons for 5 seconds to enable  or disable the child lock.

  • Q
    4. Temperature Setting
    A

    Adjust the temperature setting by pressing the 68725109_1776354304.pngor75368420_1776354350.png buttons.

  • Q
    5. Wi-Fi Connection
    A

    With the thermostat powered on, press and hold the 68725109_1776354304.pngbutton for 5 seconds. The  Wi-Fi icon will flash on the display, indicating the thermostat is entering network  connection mode.

  • Q
    6. Programming Mode
    A

    This function is only accessible via the mobile app. Open the thermostat interface  on your phone, tap the mode icon to select Programming Mode.
    (This feature is only available on Wi-Fi-enabled versions; standalone non-Wi-Fi units  cannot use it.)

  • Q
    7. Night Mode
    A

    Night Mode refers to turning off the backlight. The default Night Mode setting is OFF.
    (You can adjust the backlight on/off times via the app.)

  • Q
    8. Window Detection
    A

    Activation: Room temperature drops by 6°C within 4 minutes, heating stops.Deactivation: Room temperature rises by 3°C / 48 minutes elapsed / manual activation
    (three methods). Once window detection mode is enabled, meeting any one of these  three conditions triggers exit from window detection mode.

Product specifications
  • Product Specifications
  • Operation Mode:
    Touch Control
  • Display Mode:
    LED Display
  • Protection Grade:
    IP20
  • Housing Material:
    Flame-retardant PC+ABS V0 fire-rated material
  • Mounting Hole Spacing:
    60mm
  • Overall Dimension:
    86×86×11mm (L×W×H)
  • Sensor:
    NTC3950, 10K
  • Temperature Accuracy:
    ±1℃
  • Temperature Adjustment Step:
    ±0.5℃
  • Set Temperature Range:
    5–95℃
  • Room Temperature Range:
    5–99℃
  • Operating Ambient Temperature:
    -5–60℃
  • Ambient Humidity:
    5%–95% RH (Non-condensing)
  • Self-power Consumption:
    <2W
  • Power Supply Voltage:
    100-240V AC, 50-60Hz
  • Load Current:
    Max 16A (Electric heating), 3A (Water heating, gas boiler)
