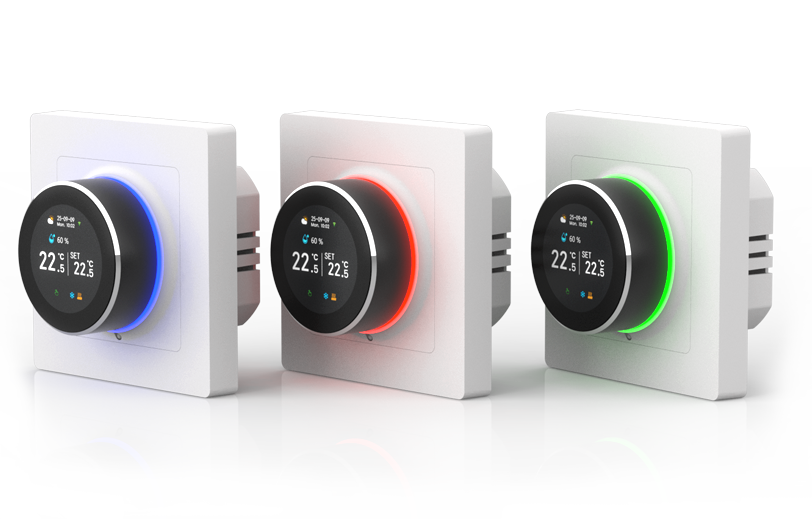

smart programmable furnace thermostat

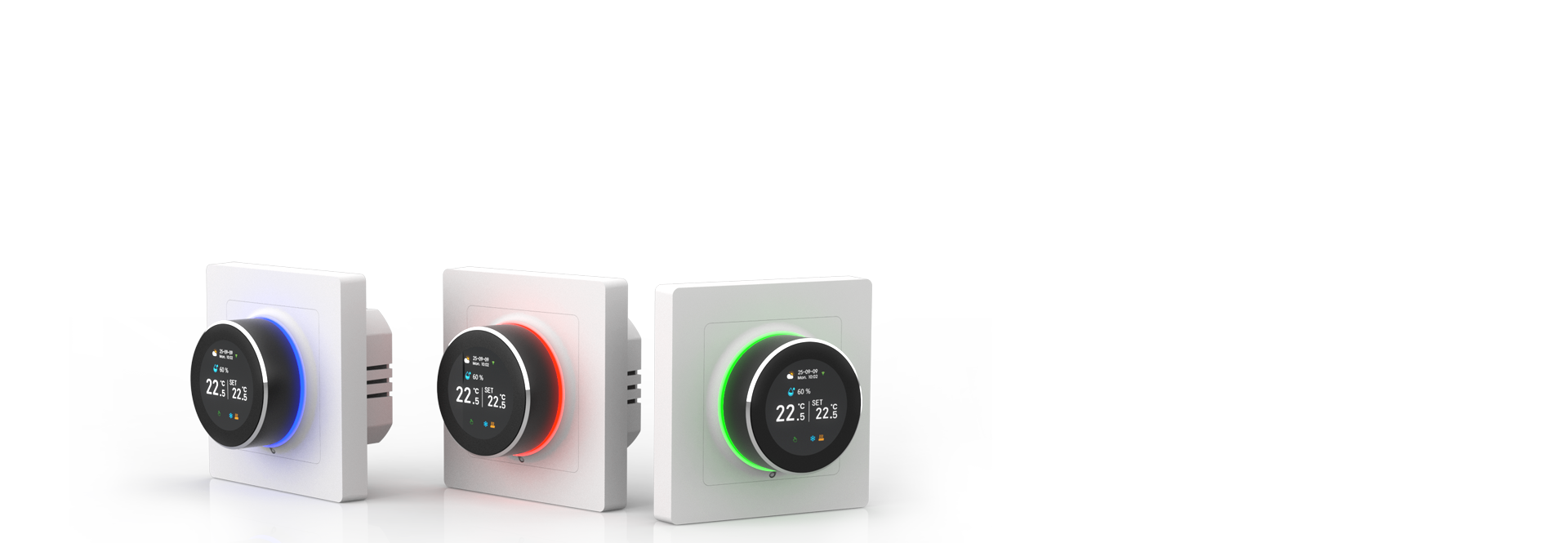

WiFi Rotary Knob Smart furnace Thermostat

Professional Smart WiFi Gas Furnace Thermostat from China factory. App control, voice assistant compatible, accurate temp control, easy installation. Wholesale & custom solutions welcome.

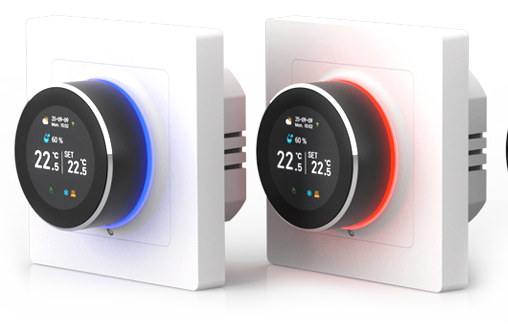

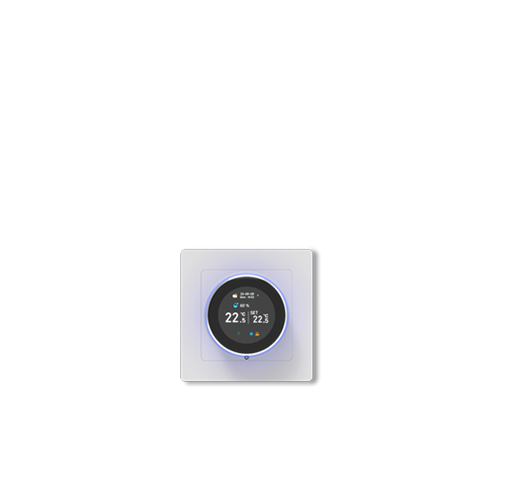

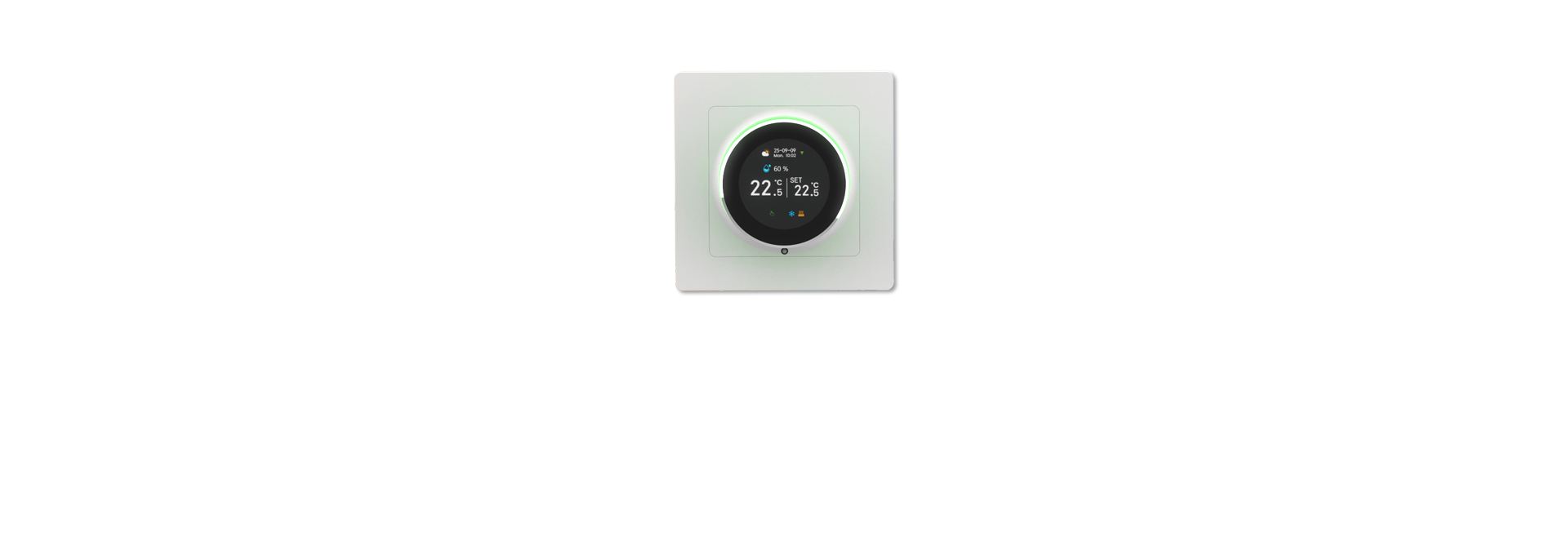

WiFi Rotary Knob Smart furnace Thermostat

Mehrere Funktionen

This thermostat features APP remote control and voice control, equipped with a clear LED display and sensitive touch buttons. It connects stably via 2.4GHz WIFI, supports programmable schedules, dimmable ambient lighting, and includes a child safety lock, fully meeting your needs for intelligence, convenience and safety.

  • App-Steuerung
    App-Steuerung
  • Sprachsteuerung
    Sprachsteuerung
  • LED Bildschirm
    LED Bildschirm
  • Touch-Taste
    Touch-Taste
  • 2.4 GHZ WLAN
    2.4 GHZ WLAN
  • Programmierbar
    Programmierbar
  • Temperature protection
    Temperature protection
  • Kinder sicherung
    Kinder sicherung

APP-Fernbedienung

Tuya oder Smart Life App
Unterstutzung fur iOS undAndroid.
Steuern Sie Ihr Raumthermostat jederzeit und uberall ausder Ferne

Sprachsteuerung

Kompatibel mit Alexa, GoogleHome

Thermostat application

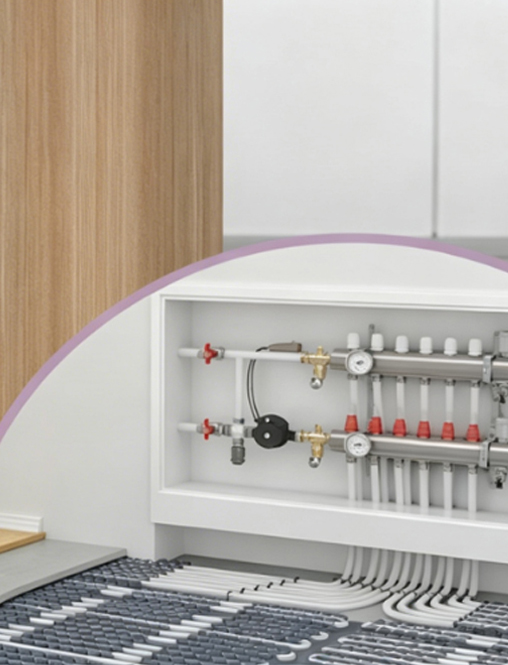

 Water/Electricity/Gas Boiler Temperature Control System

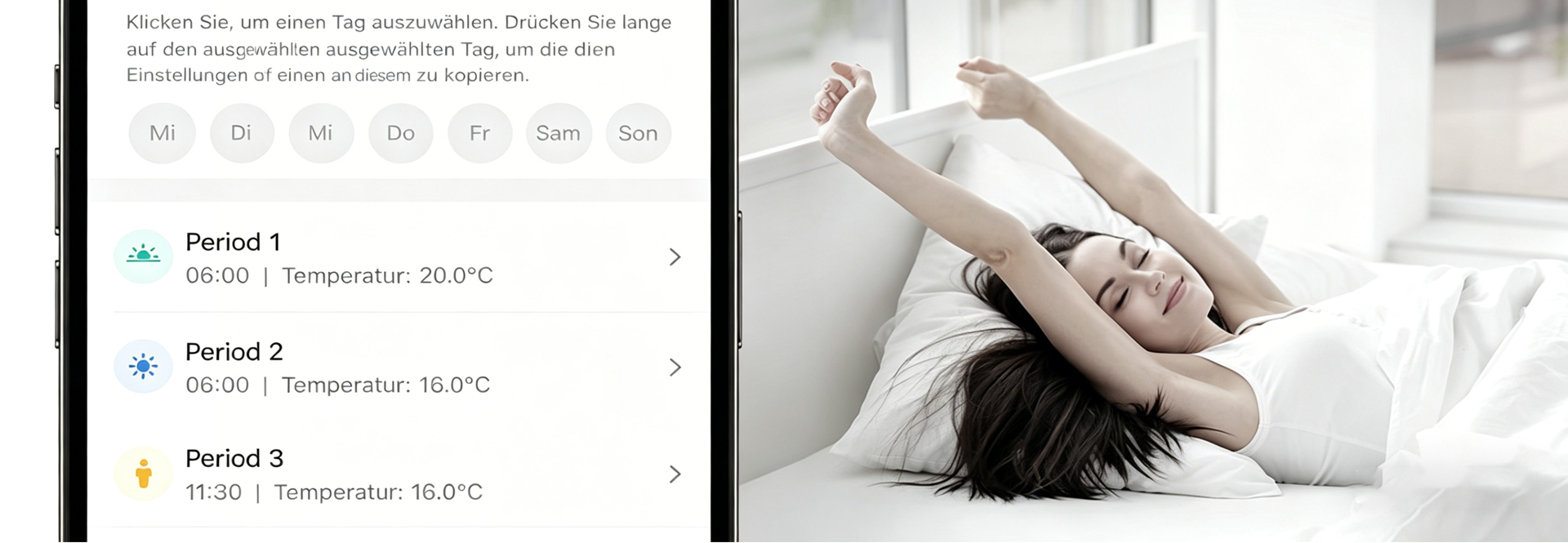

Daily Programming

06:00 | Temperature: 20.0℃
Up to 6 time periods per day can be set with different temperatures.

Knob Control

You can also control the thermostat in a traditional way with the intuitive rotary push knob.

Build a smart home with your family

You can share access to your smart thermostat with family members.

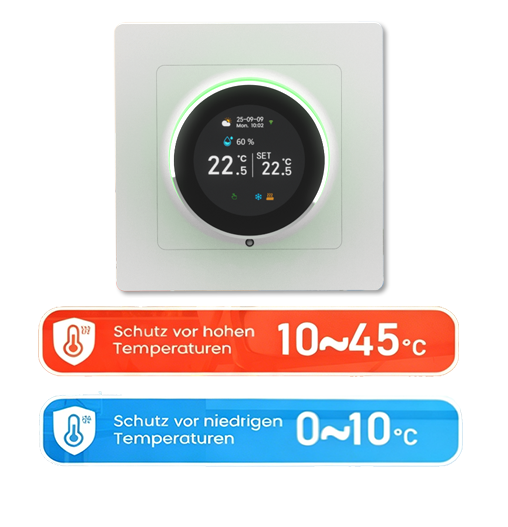

High temperature protection and frost protection

Protects floors from high heat / fire damage, and safeguards pipes / underfloor heating systems from frost damage

Precise Temperature Control

If you notice a temperature difference, you can calibrate it.

Wiring Diagram

Caution: Risk of electric shock or equipment damage.
Product specifications
  • Product Specifications
  • Button Type:
    Touch Button
  • Display Mode:
    TFT LCD Display
  • Protection Grade:
    IP20
  • Housing Material:
    Flame-retardant PC+ABS V0 fire-rated material
  • Mounting Hole Spacing:
    60mm
  • Overall Dimension:
    80.5×80.5×58mm (L×W×H)
  • Sensor:
    NTC3950, 10K
  • Temperature Accuracy:
    ±1℃
  • Temperature Adjustment Step:
    ±0.5℃
  • Set Temperature Range:
    5–95℃
  • Room Temperature Range:
    5–99℃
  • Operating Ambient Temperature:
    -5–60℃
  • Ambient Humidity:
    5%–60% RH (Non-condensing)
  • Self-power Consumption:
    <2W
  • Power Voltage:
    100-240V AC, 50-60Hz
  • Load Current:
    Max 16A (Electric heating), 3A (Water heating, gas boiler)
